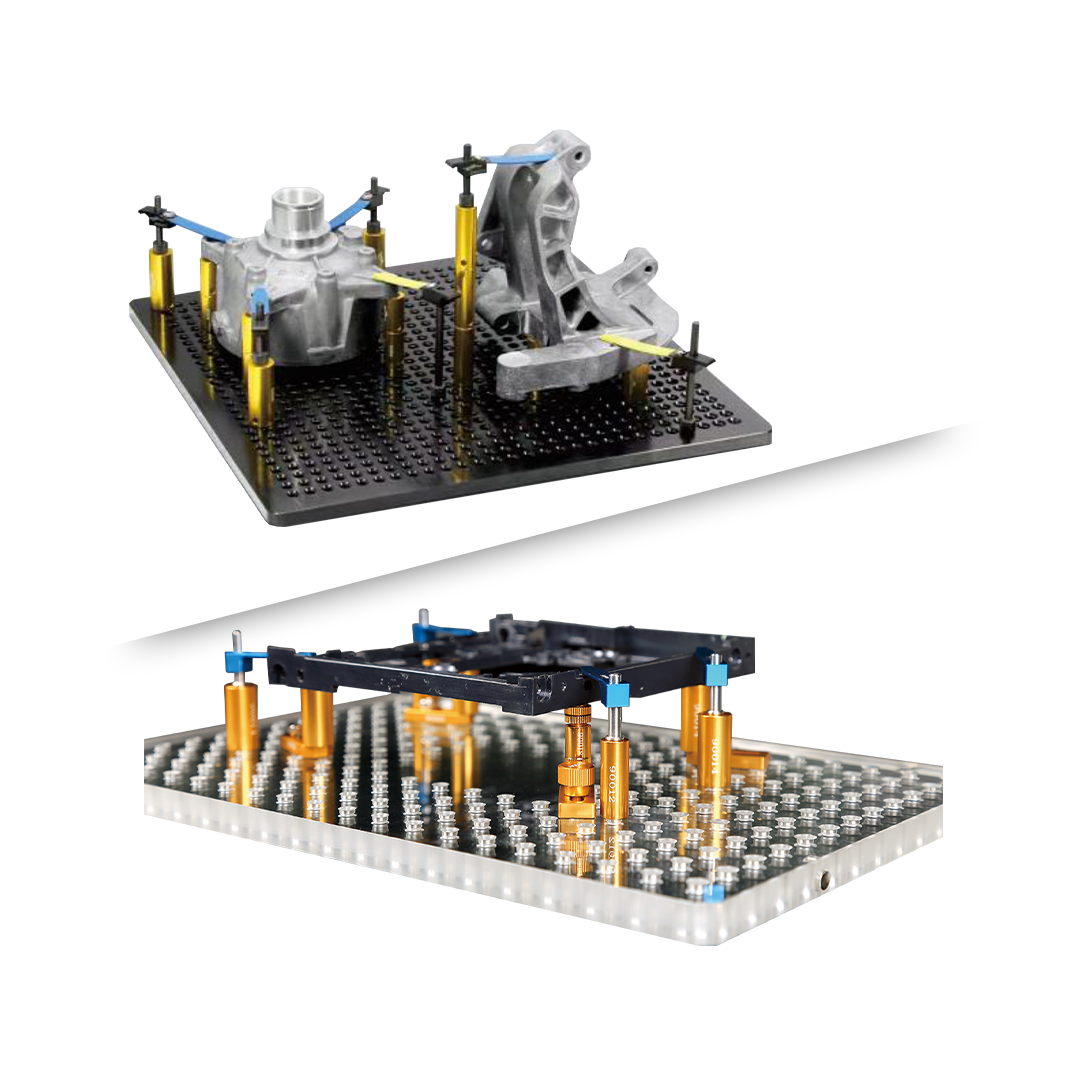

Evocus Jig Fixture System for CMM & VMM (StabiFlex Series)
A versatile modular fixturing solution for Coordinate Measuring Machines and Vision Measuring Machines.
Designed for faster setup, repeatable workpiece positioning, improved measurement flexibility and reliable inspection results
Coordinat Measuring Machine Fixture System
The StabiFlex Series CMM Fixture System provides a complete modular solution for securely positioning and holding components during coordinate measurement. Its optimized fixture design helps prevent workpiece damage or deformation while supporting reliable and accurate inspection results.
Modular Fixturing for Coordinate Measurement
The StabiFlex Series Fixture System is designed for inspection applications across electronics, aerospace, automotive, plastics and medical manufacturing. Compatible with Coordinate Measuring Machines (CMMs) and Vision Measuring Machines (VMMs) of different sizes and models, the modular system supports a wide range of workpiece shapes, sizes and materials.
Fast, consistent and repeatable fixture setups help improve measurement repeatability and accuracy while reducing setup time and measurement delays.
Modular & Expandable
The modular design can be expanded according to inspection requirements, allowing users to build suitable fixture configurations for different workpieces.
Fast Repeatable Setup
Fixture configurations can be assembled quickly without special tools, supporting consistent positioning and improved inspection throughput.
Secure Workpiece Positioning
Supporting, clamping and holding components securely position workpieces while using only the minimum clamping force required.
Clear Probe Access
Flexible fixture configurations help maintain clear and unobstructed CMM probe access for efficient measurement paths.
CMM Fixture Components
StabiFlex CMM fixture components are purpose-built for supporting, clamping and holding workpieces. The modular components allow customized fixture configurations for workpieces of different shapes, sizes and materials.
Support Components
Provide stable support and help establish the required workpiece position during inspection.
Clamping Components
Secure the workpiece using the minimum required clamping force to reduce the risk of damage or deformation.
Holding Components
Help maintain stable and repeatable workpiece positioning throughout the measurement process.
Custom Fixture Configuration
Modular elements can be combined to accommodate different workpiece geometries and inspection requirements.
CMM Fixture Base Plates
StabiFlex CMM fixture base plates are manufactured from high-precision aluminium using advanced production processes including CNC machining, precision grinding, ISE surface coating and laser marking.
Standard plates use M8 threaded holes, while custom dimensions and threaded-hole configurations are available for specific applications.
| Base Plate Size | Threaded Hole |
|---|---|
| 400 × 400 mm | M8 |
| 500 × 500 mm | M8 |
| 600 × 600 mm | M8 |
| Custom Size | Custom dimensions and threaded-hole configurations available upon request |
Vision Measuring Machine Fixture System
Many workpieces inspected using Vision Measuring Machines do not have suitable reference surfaces, making precise positioning challenging. StabiFlex provides a modular VMM fixture solution for quick, secure and reliable workpiece clamping.
Fast and repeatable fixture configurations help reduce setup time and cost while improving measurement efficiency, repeatability and accuracy.
VMM Fixture Components
Precision Manufactured
Fixture components are manufactured using precision machining processes for reliable positioning performance.
Durable Anodized Finish
An anodized surface finish provides improved wear resistance and long-term performance.
Laser-Engraved Identification
Each component carries a unique identification code so fixture configurations can be documented and reproduced for future inspections.
Improved Repeatability
Repeatable modular setups help reduce variation between workpieces or operators and improve inspection consistency.
VMM Fixture Base Plate
The StabiFlex VMM fixture base plate is manufactured from high-transparency acrylic for vision measurement applications that require profile or contour measurement using transmitted light.
High light transmission provides a straight and unobstructed profile illumination path, helping preserve the original measurement accuracy of the Vision Measuring Machine.
High-Transparency Acrylic
Designed to maintain a clear transmitted-light path for profile and contour measurement.
Embedded M4 Threaded Inserts
Metal M4 threaded inserts securely fasten fixture components while extending the service life of the base plate.
L-Shaped Magnetic Quick Positioning
An L-shaped magnetic quick-positioning bracket allows workpieces to be positioned rapidly before measurement.
Custom Configurations
Custom dimensions and threaded-hole configurations are available to meet specific inspection requirements.
VMM Base Plate Sizes
| Base Plate Size | Threaded Hole |
|---|---|
| 300 × 200 mm | M4 |
| 400 × 300 mm | M4 |
| 500 × 400 mm | M4 |
| Custom Size | Custom dimensions and threaded-hole configurations available upon request |
Flexible Fixturing for CMM & VMM Inspection
StabiFlex provides modular fixture kits, components and base plates for coordinate and vision measurement applications. Its configurable design enables users to create stable, repeatable workpiece setups while maintaining measurement access and supporting efficient inspection workflows.
