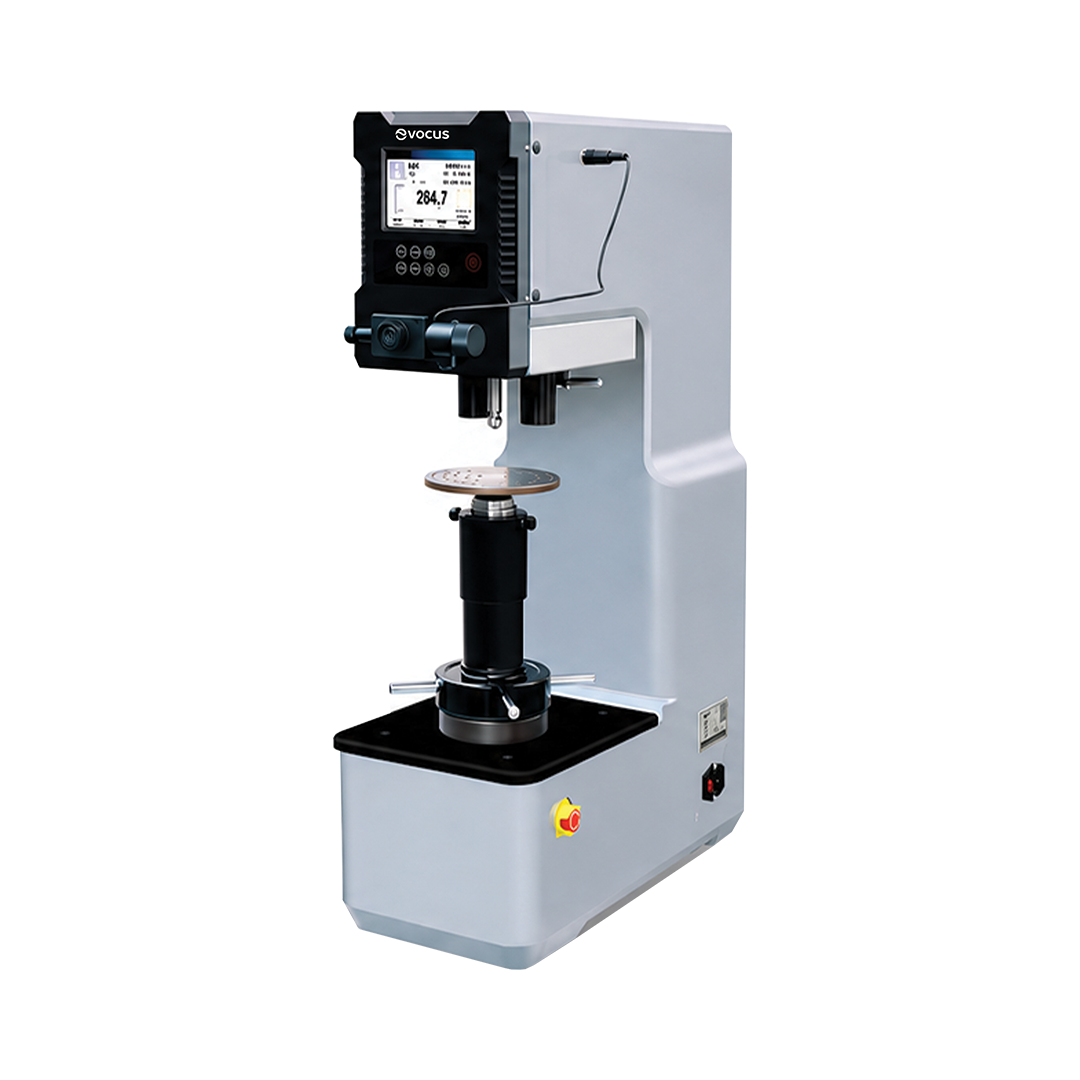

Evocus Digital Brinell Hardness Tester (Brinnix3000/3000Dual Series)
Digital Brinell hardness testers with a single-objective-lens measurement system for accurate hardness testing with simplified operation.
Automatic test-force control, digital hardness display, real-time measurement progress and up to 3000 kgf test force.
Digital Brinell Hardness Testing
Brinnix3000 and Brinnix3000Dual combine digital hardness-value display, automated test-force operation, touch control and real-time process display to simplify Brinell hardness measurement.
Technical Advantages
Anti-Scratch Touch Panel
Black crystal touch panel combined with a high-definition display for a durable touch-display system.
Automatic Hardness Measurement
Fully automatic electronic closed-loop pressure-sensor control for loading, holding and unloading.
Hardness Value Correction
Built-in software allows correction of the measured workpiece hardness value.
Hardness Limit Screening & Alarm
Upper and lower hardness limits can be set; out-of-range values trigger an automatic alarm and are recorded.
High-Rigidity Frame
New-process cast housing supports full-load application up to 3000 kgf without frame deformation.
Anti-Interference Technology
Anti-interference technology addresses electromagnetic interference to reduce crashes and screen lag.
Operation Error Correction
Incorrect test-force selection or improper operation triggers an automatic error-correction prompt.
Real-Time Measurement Progress
Progress bar and percentage display show the experimental process in real time.
Optical Measurement & Data Functions
Optical Measurement System
The optical measurement system supports offline measurement and reduces traditional manual measurement workload.
Built-In Printer
Integrated printer for direct data printing.
Real-Time Test Display
Measurement progress is displayed in real time.
Automatic Hardness Conversion
Automatic conversion of hardness scale units.
Applications
Suitable for hardness measurement of cast iron, steel, non-ferrous metals, soft alloys and other materials, as well as applicable non-metallic materials such as hard plastics and bakelite.
Optional Indentation Measurement
Optional Brinell indentation measuring instrument with CCD automatic imaging measurement
Main Technical Parameters
| Parameter | Brinnix3000 | Brinnix3000Dual |
|---|---|---|
| Testing Force | 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000 kgf 612.9, 980.7, 1226, 1839, 2452, 4903, 7355, 9807, 14710, 29420 N |
|
| Hardness Test Range | 8–650 HBW | |
| Hardness Reading | Digital display LCD reads hardness value | |
| Reading Glass Magnification | 20× | |
| Objective Lens Magnification | 1×, 2× | 1× |
| Minimum Graduation Value of Micrometer Drum | 0.001 mm | |
| Turret Type | Manual turret | |
| Hold Time | 0–60 s | |
| Indenter Specifications | Ø10 mm, Ø5 mm, Ø2.5 mm carbide indenter | |
| Maximum Height of Test Piece | 280 mm | 320 mm |
| Depth of Throat | 175 mm | |
| Language Selection | 12 languages | |
| Implementation Standards | ISO 18265, ASTM E140, GB/T 1172 | |
| Host Weight | 165 kg | |
| Power Supply | AC220 V / 50 Hz | |
| Dimensions | 560 × 270 × 960 mm | |
Accurate Brinell Hardness Measurement with Simplified Operation
Brinnix3000 / 3000Dual combines automatic loading, holding and unloading with digital hardness reading, real-time progress, hardness correction, limit screening and optical measurement functions.
