Evocus Automatic Mounting Machine (MountexLarge Series)
Fast automatic metallographic sample mounting with stable and intelligent precision control for high-quality sample preparation.
Mounting cycle as fast as approximately 5.5 minutes, with Single Head and Double Head configurations.
Fast & Intelligent Sample Mounting
MountexLarge combines automatic electric hydraulic pressure, intelligent pressure control and an optimized heating and cooling structure to improve metallographic sample mounting efficiency and consistency.
Fast Mounting Cycle
The innovative heating and cooling structure reduces sample mounting time to approximately 5.5 minutes, helping improve working efficiency.
Patented Inching Pressure Control
The pressure control system maintains stable mounting pressure to improve the quality and hardness of mounted samples.
Patented Pressure Circuit
The pressure circuit helps extrude residual air from the mounting material, producing samples with a more uniform texture and smoother surface.
Convenient Locking Device
The locking mechanism can be closed with little downward force for simple and safe operation.
Large Touch Screen
A large capacitive touch screen provides a clear display and an integrated control panel covering the machine's operations.
Two Samples in One Station
The system supports mounting two samples in one station at the same time while maintaining excellent mounting results.
Designed for Efficient Operation
Lightweight & Refined Structure
The MountexLarge series features a refined housing with good mechanical properties and a lighter shell compared with conventional heavy cast or welded mounting-press structures.
HD Touch-Screen Control
The high-definition touch screen provides sensitive touch response, clear display and intuitive operating data.
10-Language Interface
Ten languages can be freely switched to support global users and simplify machine operation.
Improved Mounting Efficiency
The optimized mounting process can significantly reduce total mounting time compared with conventional automatic and manual mounting methods
Hot Mounting Powder Options
| Mounting Powder | Colour | Application |
|---|---|---|
| PJM-B (Ordinary) | Black | For common sample preparation with high grinding speed. |
| BJM-B (Edge Preserving) | Black | Edge-protection type with low shrinkage, close combination with the mounted sample, high hardness and good wear resistance. Designed for slower grinding speed. |
| DJM-B (Electric Conduction) | Black | Carbon phenolic polymer for highly conductive applications such as electron microscopy and electropolishing. Medium grinding speed. |
| TJB-T (Transparent) | Transparent | Transparent and soluble material allowing the sample to be removed without damage. Suitable when sample size, position or depth must be observed or controlled. Medium grinding speed. |
Technical Parameters
| Parameter | MountexLarge Single Head | MountexLarge Double Head |
|---|---|---|
| Hydraulic System | Automatic Electric Hydraulic Pressure | |
| Mold Size | 1 in, 1.25 in, 1.5 in, 2 in 25, 30, 40, 50 mm |
|
| Pressure | 1–20 MPa (200 kgf–4000 kgf), in steps of 1 MPa | |
| Heating Temperature | 90°C–200°C | |
| Heating Power – 1 in / 1.25 in (25 / 30 mm) | 2400 W | 4200 W |
| Heating Power – 1.5 in / 2 in (40 / 50 mm) | 3000 W | 5400 W |
| Cooling Mode | 40–90°C in steps of 1°C 1–20 min in steps of 0.5 min |
|
| Working Environment | Operational temperature: 5–40°C / 41–104°F Humidity, non-condensing: 0–95% RH |
|
| Voltage | 220 V, 50 Hz, 1-Phase | |
| Water Inlet | 11.5 mm | |
| Water Outlet | Ø10 mm | |
| Dimensions | 530 × 485 × 463 mm | 671 × 485 × 463 mm |

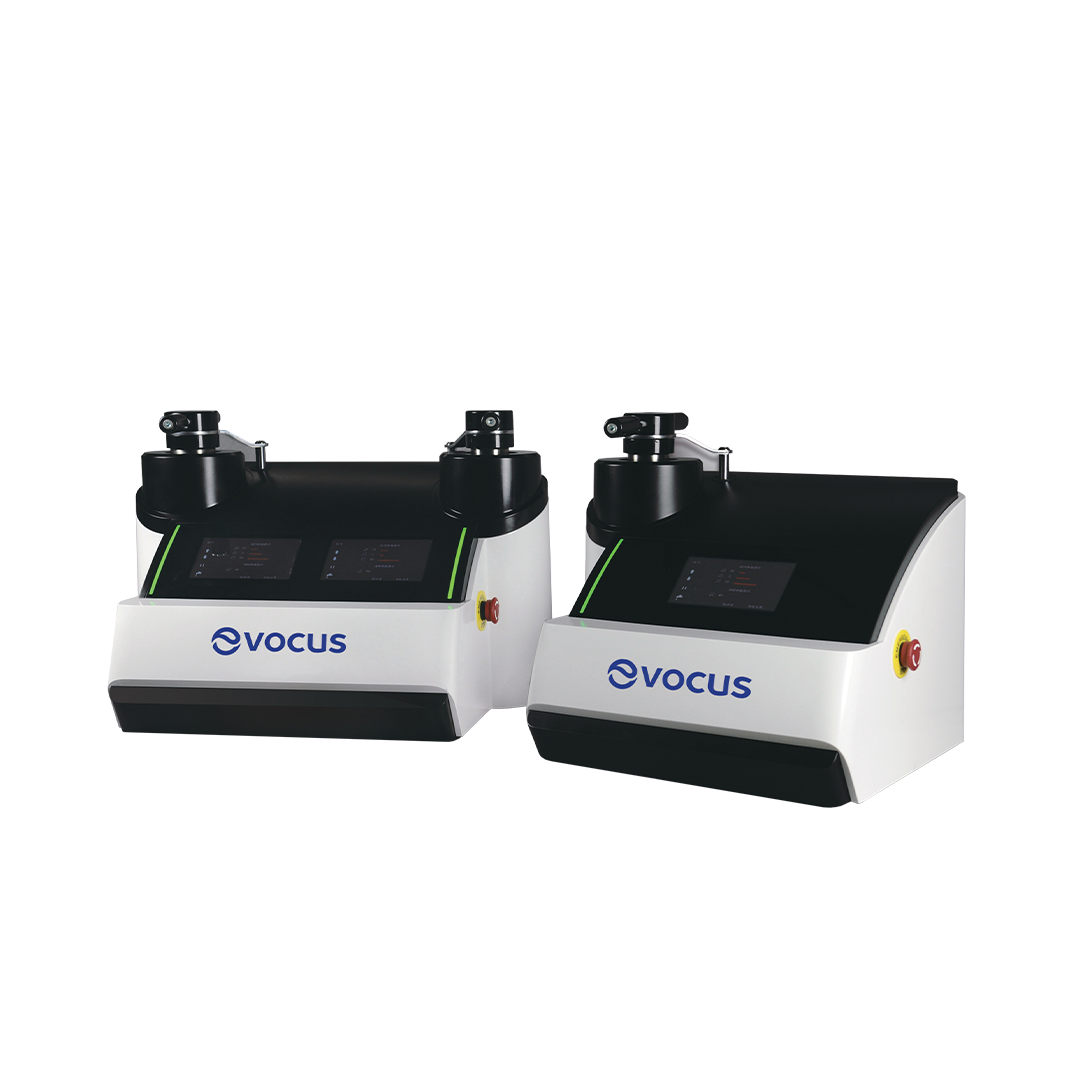

Single Head & Double Head Configurations
MountexLarge is available in Single Head and Double Head configurations to suit different sample preparation workloads. Both configurations combine automatic hydraulic pressure, adjustable mounting parameters and fast heating and cooling for consistent metallographic sample preparation.
