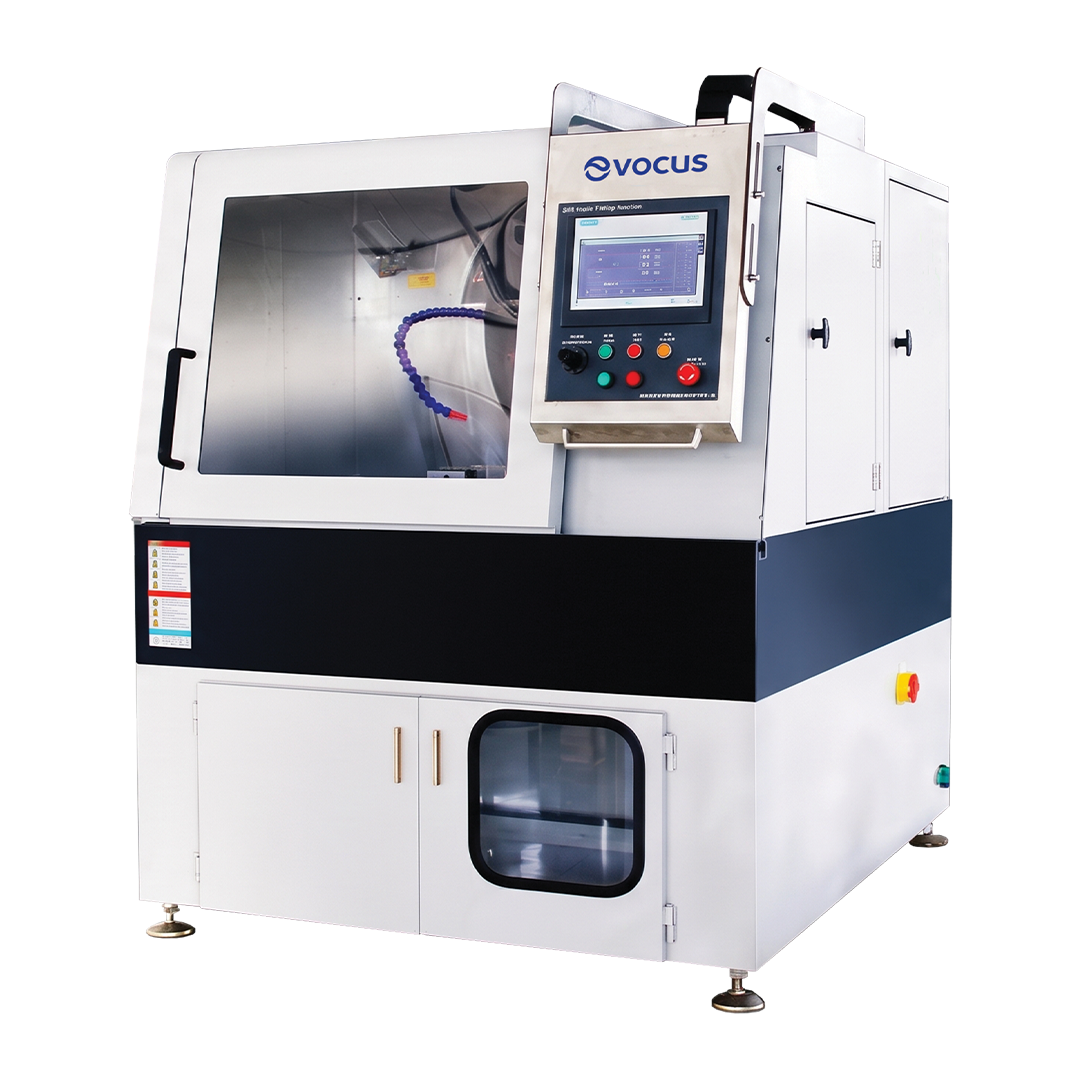

Evocus Large Metallographic Sample Cutting Machine (CutProMax160 Series)
A large-capacity automatic metallographic cutting machine designed for efficient cutting of large workpieces with stable, durable and safe operation.
Powerful automatic cutting, large working space, intelligent controls and safety-focused engineering for demanding metallographic laboratories.
Large-Capacity Automatic Cutting
CutProMax160 provides a fast, efficient, long-term stable and safe solution for large-workpiece cutting. Its large 1250 × 800 mm cutting chamber supports clamping and cutting of a wide range of large parts while maintaining an efficient laboratory workflow.
User-Friendly Design
The sliding front door and hinged side door provide expanded access to the cutting area, making it easier to position large workpieces. An intuitive interface and joystick control simplify operation and reduce training requirements.
Sliding Front Door
Provides convenient front access to the cutting chamber.
Hinged Side Door
Extends access to the chamber for larger workpieces and easier setup.
Joystick Control
Supports simple and intuitive machine positioning and operation.
Easy-to-Use Control Panel
Provides direct control and operating status information through a clear interface.
Core Features
Large 1250 × 800 mm Cutting Chamber
The large cutting chamber provides generous space for clamping and cutting a wide variety of large workpieces.
Flexible Clamping
The open working area and large platform support flexible workpiece clamping and easier placement of large or irregular specimens.
Stainless-Steel Cutting Room
The stainless-steel cutting room is designed to resist rust and paint deterioration during long-term use, supporting longer equipment service life.
Strong Cooling
Cooling nozzles on both sides of the cutting wheel can be adjusted to direct coolant close to the workpiece for effective cooling during cutting.
User-Friendly Control
An intuitive interface together with joystick control simplifies machine operation and reduces operator training requirements.
Alarm & Safety Monitoring
The alarm light provides a visual warning during emergency stop, open-door conditions and abnormal states such as overload, over-temperature or over-limit conditions.
Automatic Cutting
The cutting wheel can automatically move to a preset starting position to support faster cutting of uniform samples.
Easy Maintenance
The machine is designed for convenient access to key systems, supporting maintenance and long-term operation.
Cutting Room & Cooling Design
The stainless-steel cutting room supports long-term durability, while adjustable coolant nozzles on both sides of the cutting wheel help direct coolant close to the workpiece for strong cooling during large-sample sectioning.
Large-Capacity Cutting Machine Design
Alarm Light
Provides visual indication of machine status and abnormal operating conditions.
Water Gun
Supports convenient cleaning of the cutting area after operation.
Two High-Power LED Lights
Illuminate the cutting chamber for improved visibility during setup and cutting.
Common Tool Storage
Integrated storage keeps commonly used tools conveniently accessible.
Oil Mist Separator
Available as an optional system for cutting-room mist management.
Convenient Cutting-Wheel Replacement
The machine layout supports faster and more convenient replacement of cutting wheels.
Safety & Reliability
CutProMax160 incorporates multiple safety functions for demanding laboratory use. The machine will not start unless the front and side doors are completely closed. During cutting, both doors are secured by a safety lock and cannot be opened until the cutting wheel stops rotating.
Electromagnetic Safety Door Lock
Prevents access to the cutting chamber while the cutting wheel is operating.
Automatic Fault Detection
Multiple detectors monitor equipment operation in real time and help identify fault locations.
Over-Limit Alarm
The alarm system provides warning for conditions such as overload, over-temperature and over-limit events.
Protective Viewing Window
A thick protective resin-glass window is designed to resist scratching and erosion from coolant, abrasive particles and high-speed splash.
Cutting Productivity
Stepless Speed Regulation
Adjustable cutting-wheel speed helps optimize cutting quality for different workpiece requirements.
Two Cutting Methods
Supports chop cutting and table-feed cutting.
Two Feed Modes
Supports continuous feed mode and pulse feed mode.
Preset Automatic Start Position
The cutting wheel can automatically move to a preset starting position for faster repetitive cutting.
Main Technical Parameters
| Parameter | CutProMax160 |
|---|---|
| X-Axis Maximum Cutting Stroke | 240 mm |
| Y-Axis Maximum Cutting Stroke | 200 mm |
| Z-Axis Maximum Cutting Stroke | 220 mm |
| Maximum Cutting Range | Ø160 mm 160 × 200 mm 100 × 490 mm |
| Motor Power | 7.5 kW |
| Cutting Wheel Diameter | Ø450 mm |
| Cutting Wheel Speed | 200–2200 rpm |
| Power Supply | 380 V |
Main Features & Options
| Feature | Availability |
|---|---|
| Stepless Speed Regulation | Standard |
| Electric Traverse Workbench | Standard |
| Electromagnetic Safety Door Lock | Standard |
| Joystick Setting Function | Standard |
| Infrared Assisted Tool Setting | Optional |
| Feed Quantity Intelligent Adaptive Adjustment System | Standard |
| Cutting Schedule Real-Time Detection | Standard |
| Continuous Feed Mode | Standard |
| Pulse Feed Mode | Standard |
| Chop Cutting | Standard |
| Table Feed Cutting | Standard |
| Color Touch Screen & PLC Control System | Standard |
| Alarm System | Standard |
| Oil Mist Separation System | Optional |
| Magnetic Slag Discharge Cooling System | Optional |
| Automatic Shutdown Judgment | Standard |
| Use Time & Count Statistics | Standard |
| Device Status Information View | Standard |
Efficient Cutting of Large Metallographic Workpieces
CutProMax160 combines a large-capacity cutting chamber, 7.5 kW motor, Ø450 mm cutting wheel, multi-axis travel, multiple cutting and feed methods, intelligent monitoring and comprehensive safety functions for stable and efficient large-sample metallographic cutting.
