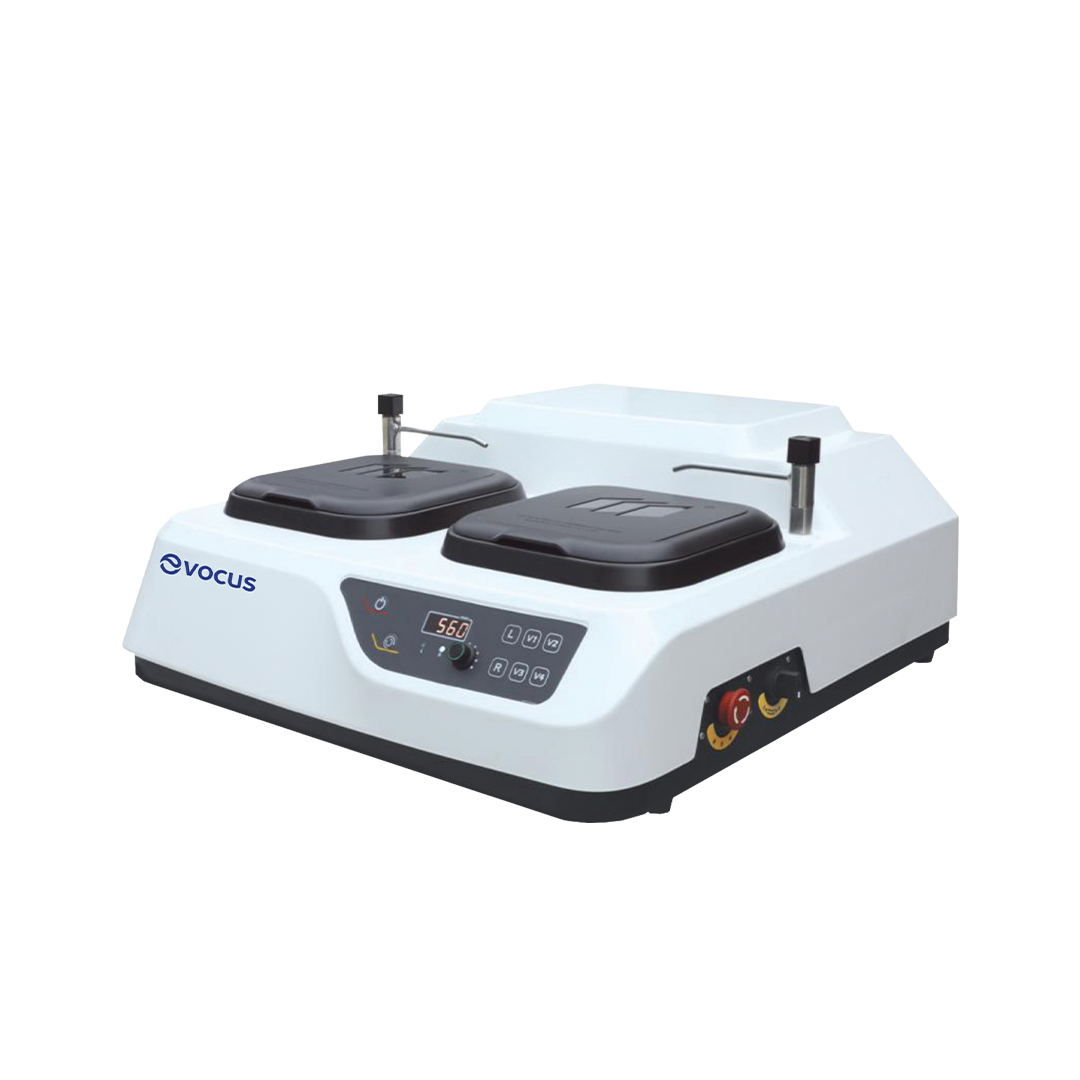

Evocus Manual Grinding/Polishing Machine (GrindPol200Dual/250Dual Series)
Dual-wheel metallographic grinding and polishing machines for pre-grinding, grinding and polishing metallographic specimens.
Microprocessor-controlled variable speed, integrated specimen cooling, bidirectional rotation and independent dual-wheel operation
Precision Grinding & Polishing
The GrindPol200Dual/250Dual Series is designed for pre-grinding, grinding and polishing metallographic specimens. Microprocessor-controlled speed adjustment provides a wide operating-speed range to support different metallographic sample-preparation requirements.
The machines combine easy operation and reliable performance for metallographic specimen preparation in factories, research institutions and college laboratories.
Dual-Wheel Grinding & Polishing
Both models are equipped with two grinding and polishing wheels, providing a dual-wheel platform for metallographic specimen preparation. Total input power is 1.5 kW, with 0.75 kW per motor.
Key Features
Dual-Wheel Configuration
Two grinding and polishing wheels provide a practical platform for metallographic pre-grinding, grinding and polishing.
Microprocessor Speed Adjustment
Microprocessor-controlled speed adjustment provides variable rotational speed according to the selected model.
Integrated Cooling System
The cooling system cools the specimen during pre-grinding to help prevent overheating and damage to the metallographic structure.
Clockwise or Anticlockwise Rotation
The grinding and polishing wheels support clockwise or anticlockwise rotation for flexible specimen preparation.
Emergency Stop
An emergency-stop function is provided on both GrindPol200Dual and GrindPol250Dual.
Four Constant Speed Settings
Constant speed selections of 150, 300, 600 and 1000 r/min are provided for convenient operation.
Two Models for Different Preparation Requirements
GrindPol200Dual
Equipped with Ø203 mm wheels and an adjustable rotational-speed range of 0–1400 r/min.
GrindPol250Dual
Equipped with Ø250 mm wheels and an adjustable rotational-speed range of 0–1000 r/min.
Cooling for Metallographic Structure Protection
The integrated cooling system cools the specimen during pre-grinding, helping prevent overheating and reducing the risk of heat-related damage to the metallographic structure.
Main Technical Parameters
| Parameter | GrindPol200Dual | GrindPol250Dual |
|---|---|---|
| Wheel Diameter | Ø203 mm | Ø250 mm |
| Rotational Speed | 0–1400 r/min | 0–1000 r/min |
| Constant Speed | 150 r/min, 300 r/min, 600 r/min, 1000 r/min | |
| Emergency Stop | Yes | |
| Rotational Direction | Clockwise or anticlockwise | |
| Input Voltage | AC220 V, 50 Hz | |
| Wheel Quantity | 2 PC | |
| Input Power | 1.5 kW (0.75 kW / motor) | |
| Dimensions | 755 × 700 × 310 mm | |
| Net Weight | 50 kg | |
Reliable Dual-Wheel Metallographic Sample Preparation
The GrindPol200Dual/250Dual Series combines dual grinding and polishing wheels, variable-speed control, bidirectional rotation and specimen cooling for reliable metallographic pre-grinding, grinding and polishing.
