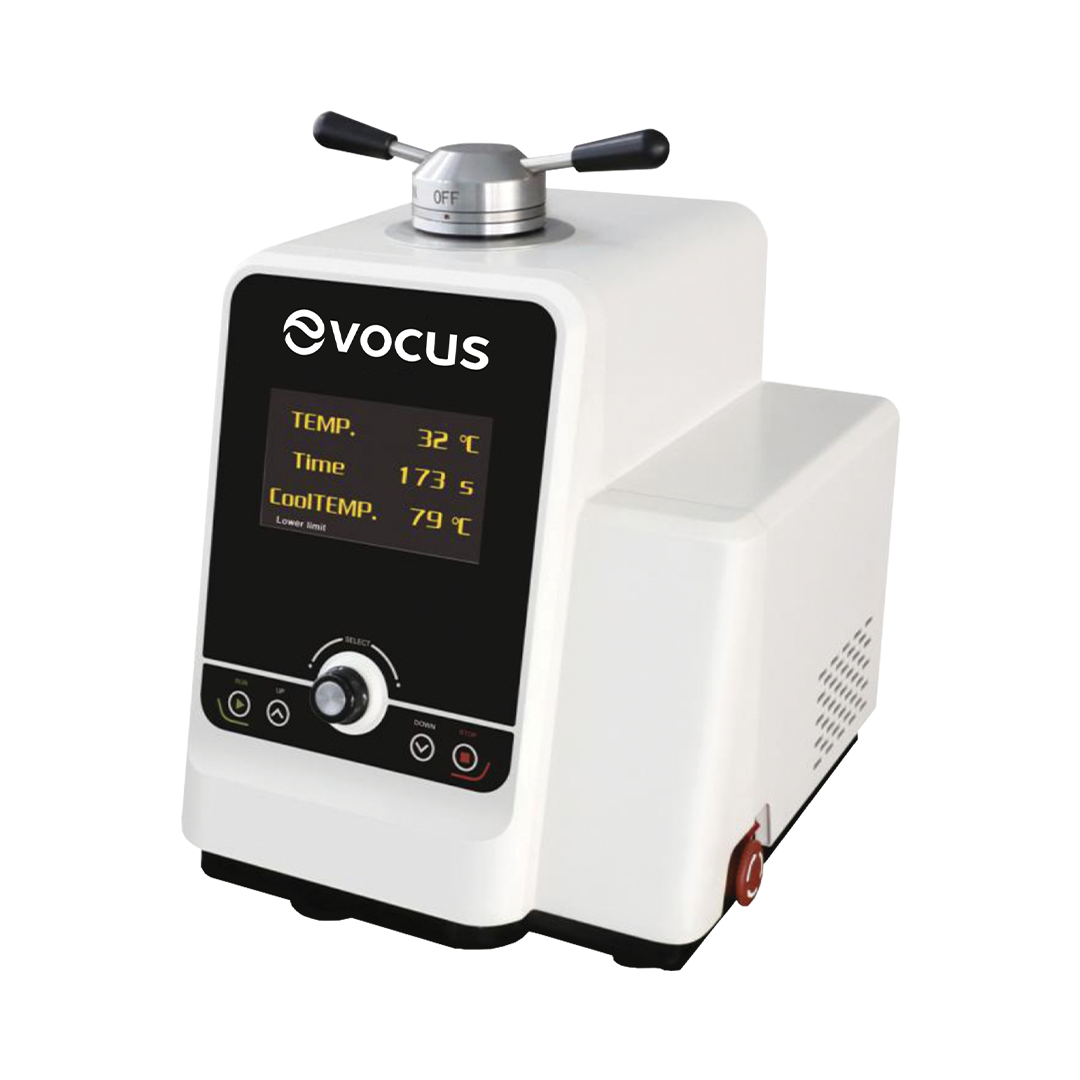

Evocus Automatic Mounting Machine (MountexStandard Series)
Automatic metallographic specimen mounting for preparing samples to the required size and shape for subsequent grinding, polishing and testing.
Automatic hot mounting with water cooling, adjustable heating temperature and configurable holding time.
Automatic Metallographic Sample Mounting
MountexStandard is designed to mount samples whose original shape or size is unsuitable for subsequent sample preparation. Mounting helps produce a suitable sample form and testing plane while protecting specimen edges and surface defects during the preparation process.
The machine is suitable for modern metallographic laboratories where mounted sample dimensions are required for semi-automatic or automatic grinding and polishing processes.
Automatic Hot Mounting Process
MountexStandard is an automatic metallographic specimen mounting machine equipped with water cooling and designed for hot mounting using thermosetting materials.
Automatic Operation
After the required parameters are set and the sample and mounting material are loaded, the machine can perform the mounting process automatically.
Adjustable Heating Temperature
The thermoforming temperature can be adjusted from 100°C to 200°C.
Adjustable Holding Time
Holding time can be configured from 0 to 999 seconds.
Water Cooling
The machine incorporates cooling with an adjustable cooling temperature range of 20°C to 90°C.
Designed for Metallographic Preparation
Sample Shape & Size Preparation
Mounting prepares unsuitable specimen shapes or sizes for subsequent grinding, polishing and inspection.
Edge & Surface Protection
The mounting process helps protect sample edges and surface defects during preparation.
Thermosetting Material Mounting
The system is suitable for hot mounting of thermosetting materials.
Automatic Process
Once the sample, mounting material and parameters are prepared, the machine can complete the set process automatically.
Main Technical Parameters
| Parameter | Specification |
|---|---|
| Model | MountexStandard Automatic Mounting Machine |
| Sample Diameter | Ø22 mm, Ø30 mm, Ø45 mm Optional: Ø40 mm |
| Thermoforming Range | 100–200°C |
| Cooling Temperature Range | 20–90°C |
| Holding Time Range | 0–999 s |
| Cooling Mode | Cooling |
| Heating Power | 650 W |
| Input Voltage | 220 V / 50 Hz |
| Dimensions | 350 × 400 × 465 mm |
| Net Weight | 48 kg |
Reliable Sample Mounting for Metallographic Preparation
MountexStandard combines automatic hot mounting, water cooling and adjustable process parameters in a compact metallographic specimen mounting system.
